Agricultural Tyre R-2 - QINGDAO WANGYU RUBBER CO.,LTD



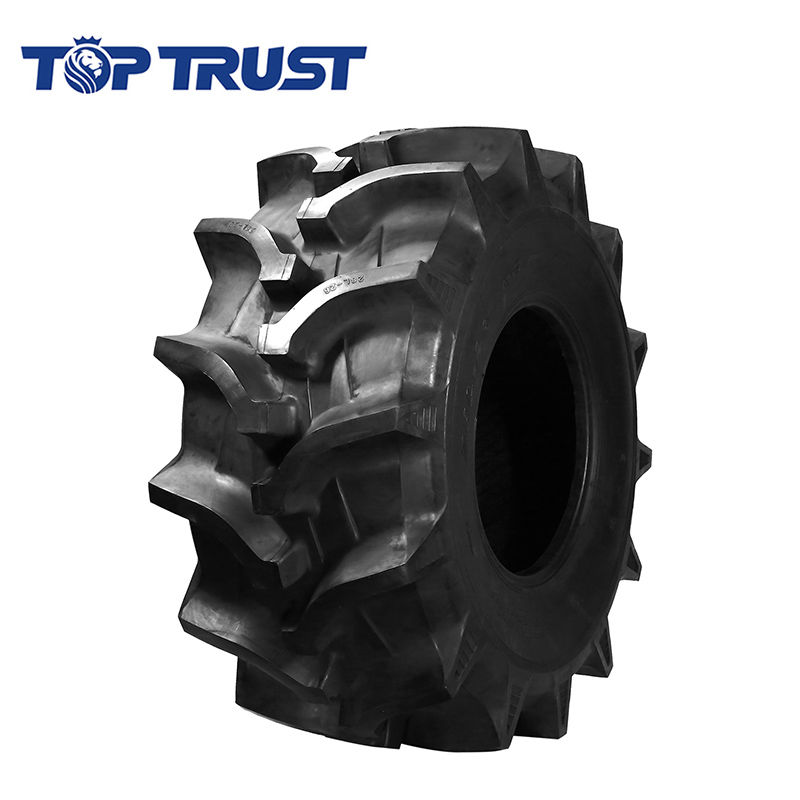

R-2

Product Details

Send Inquiry

Specification TIRE SIZE	Hierarchy PLY RATING	Standard rim STANDARD RIM	New tire inflation size (mm) INFLATED SIZE OF NEW TIRE		single tire load (Kg) LOAD	Corresponding air pressure (Kpa) PRESSURE	Pattern depth (mm)
Specification TIRE SIZE	Hierarchy PLY RATING	Standard rim STANDARD RIM	外直径 OVERALL DIAMETER	断面宽 SECTION WIDTH	single tire load (Kg) LOAD	Corresponding air pressure (Kpa) PRESSURE	Pattern depth (mm)
600-12	8	4.50E	640	165	405	250	28
600-14	8	4.50E	690	165	450	250	29
650-16	8	5.00F	765	180	565	250	30
750-16	8	5.50F	815	205	650	280	30
750-20	10	5.50F	910	205	695	240	30
8.3-20	10	W7	900	210	695	240	32
8.3-24	10	W7	995	210	810	250	35
9.5-20	10	W8	965	240	810	250	33
9.5-24	10	W8	1050	240	940	280	36
11.2-20	10	W10	1005	285	1085	240	50
11.2-24	10	W10	1105	285	1045	240	50
11.2-28	10	W10	1205	284	1300	240	54
12.4-24	10	W11	1175	315	1640	290	50
12.4-28	10	W11	1270	315	1510	230	52
12.4-48	12	W11	1800	305	3560	280	66
13.6-24	10	W12	1210	345	2200	360	56
14.9-24	10	W13	1295	378	1910	230	56
14.9-26	10	W13	1335	378	1960	230	56
15L-24	10	DW14	1352	410	2800	250	65
16.9-28	12	W15L	1458	430	2560	250	62
16.9-34	12	W15L	1600	430	2600	210	65
18.4-30	12	W16L	1565	467	2800	190	68
18.4-38	12	W16L	1800	467	3475	230	68
18.4-42	12	W16	1400	467	3700	210	75
19.5L-24	12	CW16	1350	495	2140	210	65
20.8-38	12	W18L	1870	528	3900	200	75
23.1-26	12	DW20	1660	587	3246	170	75
28L-26	12	DW25	1648	715	3610	170	75
